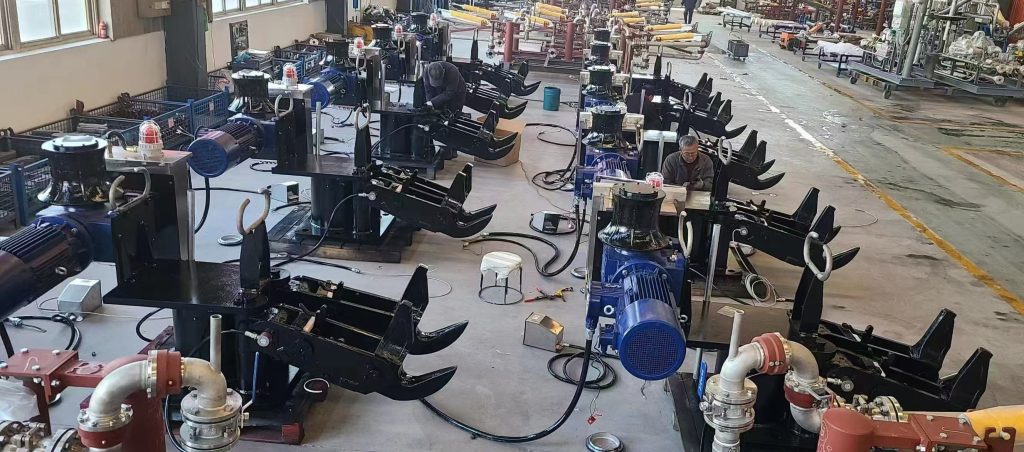

Quick Release Hooks
SME Marine supplies electric and manual quick release hooks for ports, terminals and marine berthing facilities. Designed for secure mooring and controlled line release, our QRH systems are available in multiple load capacities and hook configurations to meet different project requirements.
Electric Quick Release Hooks
SME Marine supplies electric quick release hooks for ports, oil terminals and marine berthing facilities. The system allows mooring lines to be released remotely, including under full working load, helping improve operational safety and vessel turnaround efficiency.
Available in single-hook and multiple-hook configurations, electric QRH systems can be selected according to required load capacity, site conditions and operating requirements.
- Design capacities from 45T to 150T per hook
- Single to four-hook configurations
- Electric capstan traction: 10–30 kN
- Motor power: 5.5–30 kW
- Protection rating: IP55
- Explosion-proof rating: Ex d IIB T4
- Release force: ≤175 N
Electric QRH Specifications
Electric quick release hooks are available in different load capacities and configurations. Final specifications can be confirmed according to project requirements.
| Specification | Details |
|---|---|
| Design Capacity per Hook | 45T, 60T, 78T, 100T, 125T, 150T |
| Hook Quantity per Set | 1–4 hooks |
| Electric Capstan Traction | 10–30 kN |
| Motor Power | 5.5–30 kW |
| Protection Rating | IP55 |
| Explosion-Proof Rating | Ex d IIB T4 |
| Release Force | ≤175 N |
Manual Quick Release Hooks
SME Marine supplies manual quick release hooks for ports, terminals and other marine facilities requiring practical and dependable mooring equipment. The manual release mechanism offers straightforward operation without an electric drive system.
Available in single-hook and multiple-hook arrangements, manual QRH systems can be configured for new terminal construction or equipment replacement projects.
Key Features
- Load capacities from 45T to 150T per hook
- Single to four-hook configurations
- Manual release mechanism
- Cast or fabricated base options, subject to design
- Suitable for new installations and retrofit projects
- Release force: ≤175 N
Manual QRH Specifications
Manual quick release hooks are available in different load capacities and hook configurations. The final arrangement can be selected according to the mooring system design and project requirements.
| Specification | Details |
|---|---|
| Design Capacity per Hook | 45T, 60T, 78T, 100T, 125T, 150T |
| Hook Quantity per Set | 1–4 hooks |
| Operating Method | Manual release |
| Base Construction | Cast or fabricated, subject to design |
| Release Force | ≤175 N |
Quick Release Hook Applications
SME Marine quick release hooks are designed for mooring operations across a range of marine and industrial facilities.
Commercial Ports
For vessel mooring at general cargo terminals and container ports.

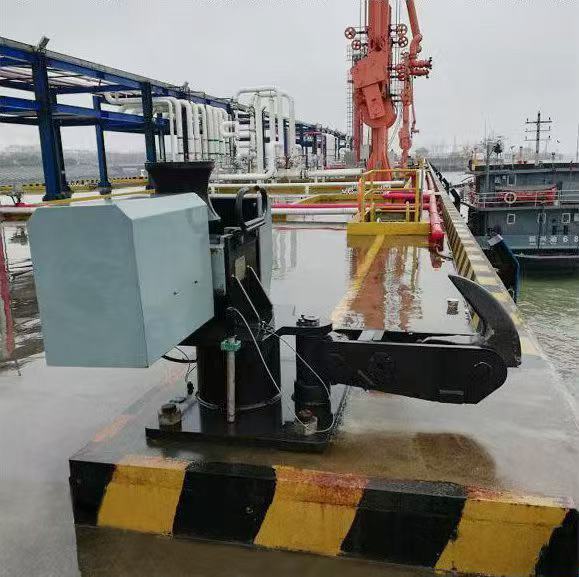

Oil & Gas Terminals
For berthing facilities handling tankers and other specialized vessels.
Marine Terminals
For mooring arrangements at jetties and industrial waterfront facilities.
Looking for Quick Release Hooks?
Contact SME Marine with your required hook capacity, configuration and project specifications. Our team can help you identify a suitable solution for your mooring system.
