SME Cone fender system, together with our acclaimed Cell fender system, forms the cornerstone of our product portfolio and has gained tremendous market acceptance.

The system is unique and offers two conical design options: Chinese Cone and International Cone. Both types of cone fenders exhibit the same outstanding performance, ensuring superior cushioning and protection in a variety of application scenarios. The only difference between them is their external dimensions, which can be tailored to the different needs of customers and installation environments.

Features

Conical Design:Its unique shape provides exceptional stability along with outstanding shear strength, ensuring reliability in various environments.

Efficient Space Utilization: Despite its compact size, it achieves the same level of protection as larger fenders, effectively saving installation space and reducing overall costs, making it the ideal choice for space optimization and cost control.

Flexible Installation: Supports inverted taper installation configurations, particularly suitable for complex environments with limited space for dock components, showcasing high adaptability and flexibility.

Superior Energy Absorption with Low Reaction Force: Compared to traditional Cell fenders, the Cone fender absorbs more impact energy during larger compression deformations while generating a lower reaction force, effectively protecting vessels and dock structures.

What makes us different

Up to 72% compression, high energy absorption.
Can be installed in an inverted cone, suitable for berths with limited installation size.
Two types of molds to choose from: Chinese Cone type and International Cone type

Cone Fender Systems – An Unrivalled Excellence

Cone Fender systems rank among the most advanced marine fender systems on the market. Their unique cone-shaped design absorbs high energy while keeping reaction forces low. This allows vessels of all sizes to berth safely and efficiently. With proven durability and consistent performance, cone fender systems provide reliable protection for ports and terminals. They ensure efficiency, safety, and long-term operational reliability.

Available Cone Fender Sizes

We manufacture a wide range of cone fender sizes, including:
Cone 630, Cone 800, Cone 900, Cone 1000, Cone 1100, Cone 1150, Cone 1200, Cone 1300, Cone 1400, Cone 1600, Cone 1800, Cone 2000.

Differences Between Cone Fenders

Cell fender bodies maintain consistent dimensions across manufacturers worldwide. Cone Fenders, however, vary significantly. Common versions include Trelleborg SCN, Chinese cone types, and Japanese SPC fenders. These size and design differences can create challenges during repair or replacement. Not all cone fender models fit existing installations.

Evaluating Compatibility

When selecting a cone fender system, we examine both performance and design differences. This ensures proper compatibility and optimal results for each port or terminal.

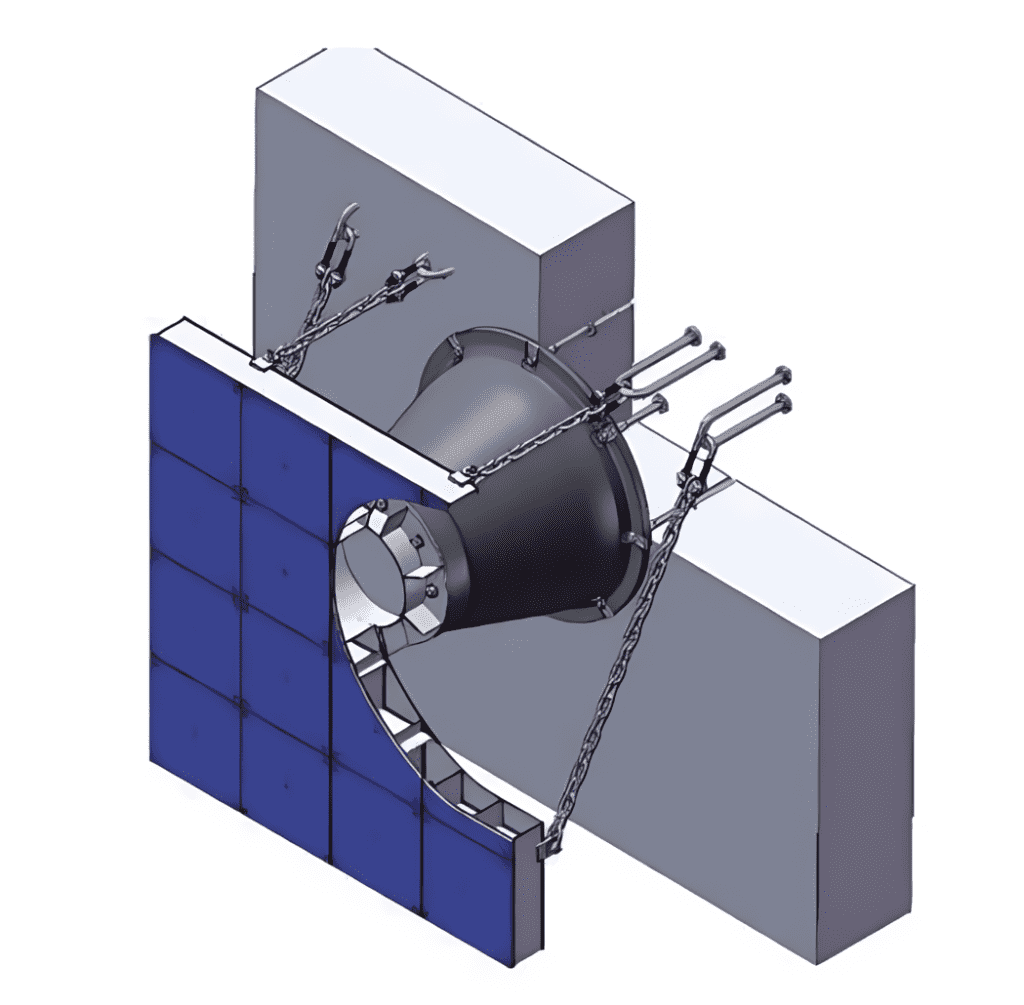

Key Components of a Cone Fender System

A complete cone fender system includes the cone body, frontal panel, panel pads, weight chains, shear chains, and anchoring system. Our engineers design each setup to match specific site conditions and project requirements. This approach maximizes performance and durability.

Layout Options and Modular Configurations

Cone Fenders support multiple layout configurations to meet different collision-protection and energy-absorption needs. The most common setup uses one cone supporting a single frontal panel. For larger berths, two or more cones may support one panel.

Benefits of Modular Design

This modular approach increases space efficiency, enhances performance, and reduces overall costs while maintaining safe and reliable berthing operations.

Selecting the Right Configuration

We determine the optimal cone fender configuration based on tidal variations, vessel berthing speed, ship type, and operational conditions. Each installation delivers reliable performance, long-term durability, and effective protection.
